10 / 100 / 1000M Ethernet Surge Protector (Industrial / Passive)

SPD-ETH-1

  •    In Stock

Buy other quantities or require a custom solution? Contact us now.


Details

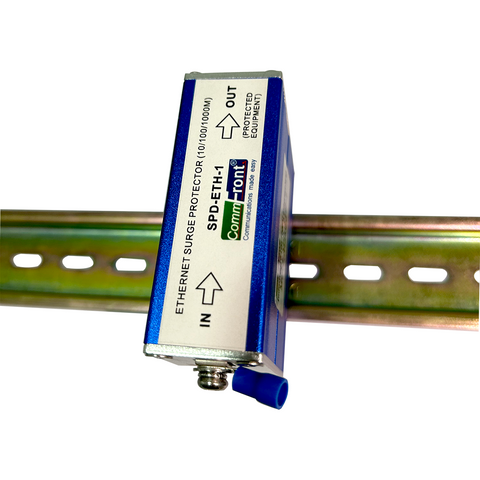

The SPD-ETH-1 is a passive, rugged, industrial-grade, 10 / 100 / 1000M Ethernet surge protector that can be used to limit the voltage surges and spikes introduced to the Ethernet data lines. The unit features 2-stage surge protection – Gas Discharge Tubes (GDT) and Transient Voltage Suppressors (TVS). The SPD-ETH-1 is designed to connect in series to the input of the protected equipment; when a high-voltage surge is introduced into the input, the GDT conducts electric current after becoming ionized, which in turn discharges the high-voltage surge to the earth ground. The excessive voltage will be further clamped to a safe range that the equipment can accept by the TVS. This industrial Ethernet surge protector features passive circuitry designs and thus requires no external power; it supports data rates up to 1000Mbps and can be used for protecting 10 / 100 / 1000M Ethernet equipment. This product comes with a dedicated cable lug for solid earth ground connections and can be mounted directly onto a standard 35mm DIN rail, making it an ideal solution for heavy-duty industrial applications.

Features

  • Industrial 10 / 100 / 1000M Ethernet surge protector (passive).
  • Protects 10 / 100 / 1000M Ethernet data lines.
  • 2-stage surge protection.
  • RJ45 female sockets for easy connections.
  • Dedicated cable lug for solid earth ground connections.
  • Passive circuitry, no power is required.
  • Supports data rates up to 1000Mbps.
  • Direct DIN-Rail mounting.
  • Operating temperature: -40°F to 185°F (-40°C to 85°C).
  • Surface Mount Technology manufactured to RoHS and ISO-9001 standards.
  • Test Standards: IEC61643-21 / EN61643-21.
  • 5-year manufacturer’s warranty.

Specifications

Compatibility: IEEE 802.3, 802.3u, 802.3ab standards
Protection: 2-stage surge protection (Gas Discharge Tubes and Transient Voltage Suppressors)
Power Source: Passive device, no power required
Clamping Voltage (stage 1): 120 V
Series Resistance (stage 2): ≤0.5 Ohms
Clamping Voltage (stage 3): 58 V
Response Time: ≤1ns
Insertion Loss (100MHz): ≤1dB
Data Rates: 10/100/1000Mbps (auto-switching)
Cable Lug for Earth Ground: Dedicated cable lug for earth ground connection (cable size: up to 12AWG / 3.3mm2)
Connectors/Sockets: RJ45 female sockets (protected pins: 1,2; 3,6; 4,5; 7,8)
Dimensions (H x W x D): 3.0 x 2.4 x 1.0 in (75 x 62 x 25 mm)
Mounting: Direct 35mm DIN-rail mounting
Weight: 3.7 oz (106 g)
Operating Temperature: -40°F to 185°F (-40°C to 85°C)
Operating Humidity: 5~95% RH (no condensation)
